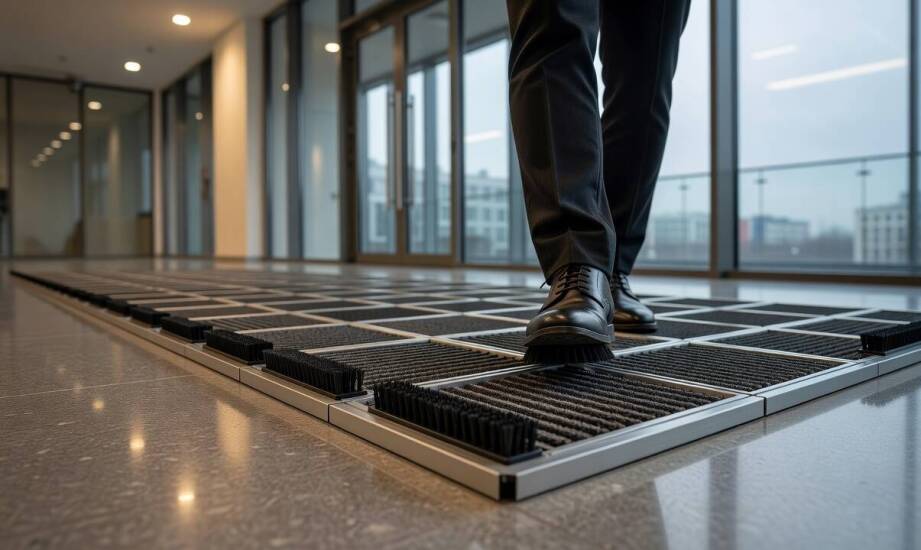

Why an Aluminium Mat Alone Is Not Enough: How Profiles, Inserts, and Installation Create a Cleaning Zone

The aluminum structure of a doormat is primarily responsible for the stability of the system, while the actual cleaning work is performed by inserts working together with a properly prepared installation area. The effectiveness of an entrance zone therefore depends on the geometry of the profiles, the type of working components, and the method of installing the entire system in relation to the floor. An incorrectly selected insert or an excessively shallow recess can limit the capabilities of even a solid aluminum structure. For this reason, an entrance system should be analyzed as a set of several cooperating elements rather than as a single mat.

Read more: The production process of bar mats from PVC: technology and innovation

What Does an Effective Aluminum Entrance System Consist Of?

An aluminum entrance system consists of load-bearing profiles, cleaning inserts, and a structure that enables the collection or drainage of removed dirt. Each of these elements performs a different task, which is why the profile material alone does not determine cleaning efficiency.

Read more: Low-emission Technologies in Fuel Tank Production: What Should You Know?

Profiles maintain the geometry of the mat and transfer loads generated by pedestrian traffic. The inserts come into direct contact with footwear soles and are therefore responsible for scraping off dirt or absorbing moisture. The free space between the elements allows some of the sand to move below the walking surface. Depending on the design, the mat may be installed in a recess or directly on the finished floor using ramp profiles.

Read more: Automation in petri dish production – what benefits does it bring?

When evaluating the entire system, the following should be considered above all:

• aluminium profiles – form the load-bearing structure and keep the inserts in their designed position;

• brush inserts – mechanically remove sand and other dry contaminants trapped in shoe treads;

• textile inserts – absorb finer contaminants and moisture, making them better suited to the later stages of the cleaning sequence;

• space between profiles – allows some removed contaminants to be separated from the surface that comes into contact with footwear soles;

• installation recess – stabilises the mat at floor level and creates the space required for the operation of a specific system;

• frame or ramp profiles – define the edge of the system and help adapt it to the chosen installation method.

This is precisely why building entrance doormats should form a complete entrance zone rather than merely a visible aluminum grille. The structure only works effectively when the insert matches the type of contamination and the substrate has been prepared for the height and installation method of the specific system.

The Insert Determines What Contaminants the mat actually removes.

An aluminum profile alone does not perform the full cleaning function, because contact with the sole is primarily handled by the material installed within the structure. The choice of insert should be based on the dominant type of contamination and the location of the mat within the overall entrance sequence. Brushes are intended for intensive mechanical cleaning, while textile-type inserts perform better when absorbing moisture and finer particles.

Different inserts can also be combined within a single traffic route. The first section of the entrance may remove sand and larger particles, while the next section reduces the amount of water and fine dirt transferred further onto the floor. This gradual progression of functions is particularly useful in high-traffic areas because one short surface does not have to perform all tasks at once. The system should therefore progress from more aggressive mechanical cleaning towards drying.

How Do Profile Height and Installation Method Affect Mat Performance?

The profile height must be matched to the recess depth or surface-mounted solution, because the mat surface should operate stably in relation to the adjacent floor. A mismatch in levels may cause the structure to shift, increase edge loads, and reduce walking comfort.

Aluminum systems are available in different heights, and this parameter depends, among other things, on the profile design and the insert used. Example solutions start at approximately 10-12 mm, while outdoor mats may have different dimensions depending on the type of cleaning component. Therefore, the recess design should be based on the documentation of the selected system rather than on an arbitrary depth chosen in advance.

The following should be checked before the floor is installed:

• mat height,

• recess depth,

• frame thickness,

• adjacent floor level,

• space for dirt collection,

• possibility of lifting the mat.

Proper installation reduces structural movement during use and facilitates cleaning of the surface beneath the profiles. When modernizing an existing entrance, a mat installed on a finished floor with an appropriate ramp profile may also be a viable solution.

What Happens to Sand and Water After Passing Through the Mat Surface?

Contaminants removed from footwear soles should be moved away from the main contact surface and collected in a place from which they can later be removed. If sand fills the space between or beneath the profiles, the system's ability to accept further contaminants decreases. Where higher moisture loads occur, a separate sediment trap with drainage can be used; complete systems of this type may have a height of 80 mm and can be used in both outdoor and indoor zones. However, drainage solutions should be treated as part of the technical design of the entrance because they require access for cleaning and maintenance of drainage capacity.

Why Should the Entrance Zone Structure Be Planned Before the Floor Is Installed?

The easiest way to achieve correct mat installation is to take the system height, frame, and recess into account before the final floor layer is installed. Attempting to fit a mat into a recess that is too shallow at a later stage may require changing the model or using additional leveling elements. Technical materials from Unimat Factory also separate the issues of entrance system selection and measurement, highlighting the importance of defining installation conditions in advance. Therefore, when designing a new entrance, it is advisable to determine the final floor height, mat type, and future access method to the space beneath it at the same time.

Key Information: How to Build an Effective Aluminium Entrance Zone

• Aluminum profiles form the load-bearing structure of the mat, while cleaning performance primarily results from the inserts used and their position within the entrance sequence.

• A brush insert should be used where sand and dirt trapped in shoe treads need to be removed mechanically.

• Surfaces intended for drying are best located after the intensive cleaning zone, once the largest particles have already been detached from footwear soles.

• The recess depth must correspond to the height of the selected system because not all aluminum mats have the same structural cross-section.

• The space beneath the mat requires maintenance access because accumulated abrasive material should be removed regularly.

• Zones exposed to large amounts of water may require a sediment trap and controlled drainage rather than just a mat installed in a recess.

FAQ

Can an aluminum mat be installed without creating a floor recess?

Yes, provided that the design of the specific model allows surface-mounted installation. In such cases, appropriate ramp profiles are used to create a transition between the floor level and the mat surface.

Can the insert be replaced without replacing the aluminum structure?

The possibility of replacing only the insert depends on the design of the specific system and the method by which it is secured within the profile. When planning long-term use, it is therefore worth checking the availability of working components and the servicing procedure before purchasing the system.

Is a drain required beneath an aluminum mat?

A drain is not required in every location. It is particularly justified in areas where larger amounts of water regularly enter the entrance zone; complete sediment trap systems with drainage are available for use with entrance mats.
